SMD VCSEL 650nm Light Source: Full Replacement for TO-Packaged Lasers, Ushering in a New Era of Miniaturized Laser Applications

As industrial sensing, medical healthcare and consumer electronics move rapidly toward miniaturization and intelligence, conventional TO-packaged laser diodes are facing bottlenecks of bulky size, complex assembly and high integration difficulty. The surface-mount Vertical-Cavity Surface-Emitting Laser (VCSEL) 650nm red light source, with its SMD package, circular beam profile, high stability and automated mass production advantages, is emerging as a next-generation solution to replace traditional TO-packaged lasers, driving laser applications toward a thinner, more efficient and lower-cost future.

I. Four Key Pain Points of Conventional TO-Packaged Lasers Driving Technology Iteration

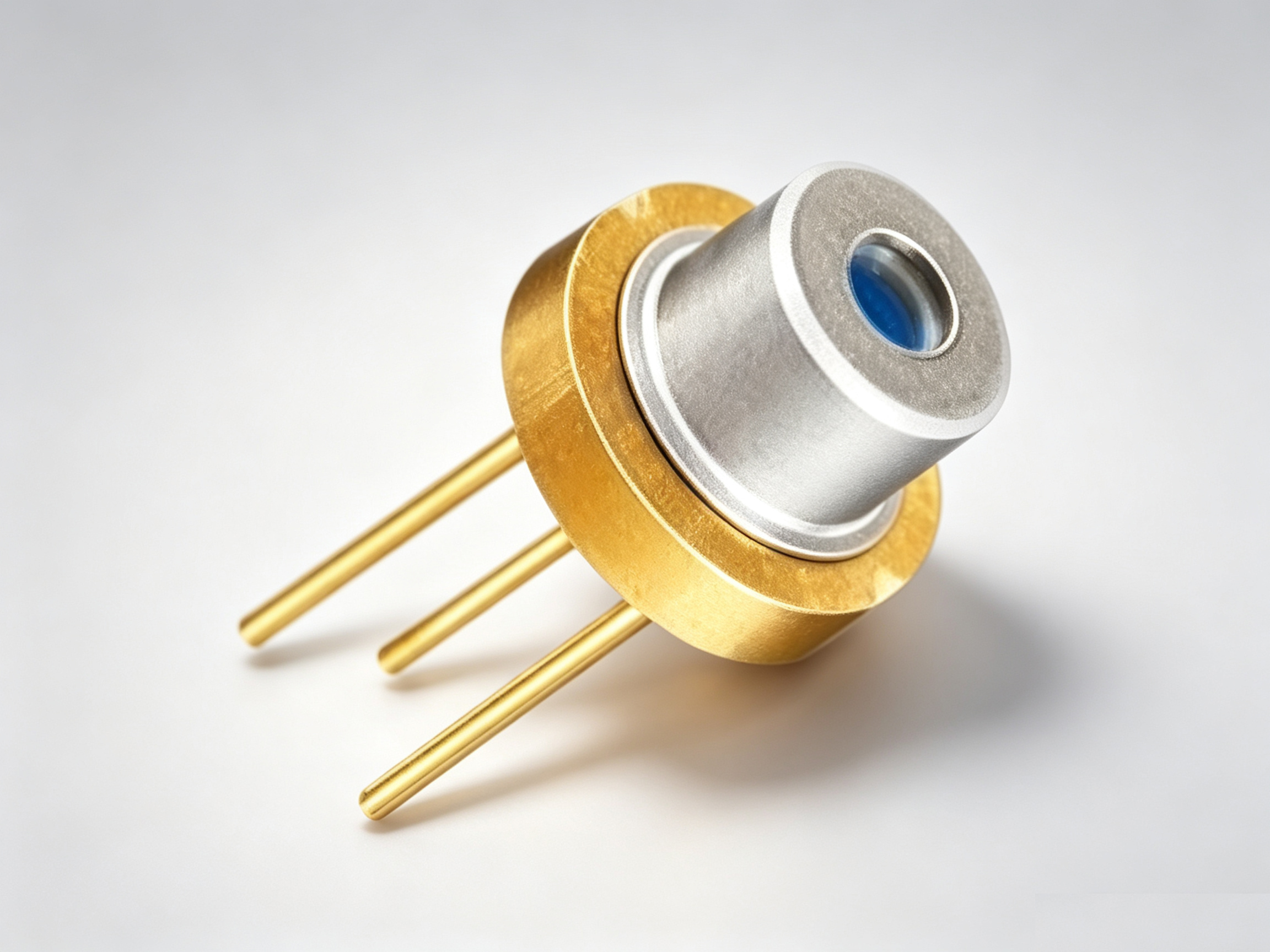

For decades, metal-packaged laser diodes such as TO56 and TO18 have dominated the 650nm band with mature manufacturing processes, yet their inherent limitations can no longer meet modern product design requirements:



1. Bulky form factor, limited structural design
   TO packages adopt a cylindrical structure with a metal base and glass cap, typically over 5mm in height. They cannot fit into slim devices and require reserved mounting holes and heat dissipation space, severely restricting product miniaturization.
2. Cumbersome assembly, low automation
   As through-hole devices, TO packages are incompatible with standard SMT production lines. They require manual or dedicated equipment for insertion, soldering and optical alignment, resulting in low efficiency, poor consistency and high labor costs.
3. Poor beam quality, high optical system cost
   Traditional edge-emitting lasers output elliptical beams with large and asymmetric divergence angles. Complex collimation and beam shaping optics are required to obtain usable spots, significantly increasing BOM cost and assembly difficulty.
4. Insufficient wavelength stability, limited environmental adaptability
   Edge-emitting lasers have a wavelength temperature coefficient of approximately 0.25–0.3nm/℃, with noticeable wavelength drift under high and low temperature conditions, which directly affects the consistency of precision detection and medical treatment results.

II. SMD VCSEL 650nm vs. TO-Packaged Lasers: Comprehensive Superiority in 6 Dimensions

The SMD VCSEL 650nm light source represents a fundamental innovation from light emission principle to package form, delivering all-round advantages over TO-packaged lasers in key performance and engineering metrics:



III. Core Values of SMD VCSEL 650nm to Reshape Product Competitiveness

1. Ultra-miniaturization for expanded design freedom

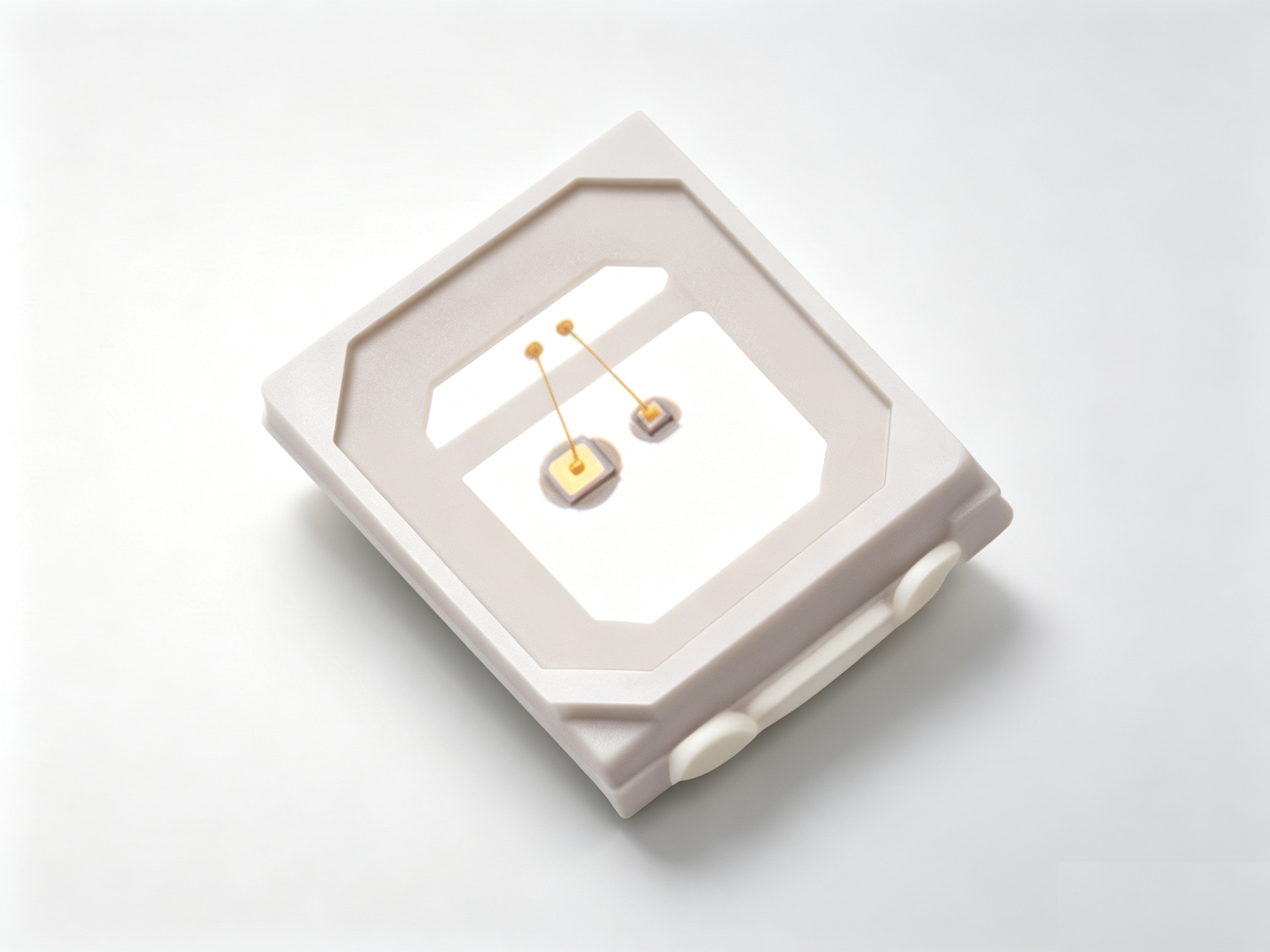

Adopting standard SMD packages (such as 3030 and 3535 specifications) with a height of only 1.2–1.5mm, the Z-axis height is reduced by over 70% compared with TO56 packages. It can be directly mounted on PCB surfaces without additional structural fixtures, enabling laser hair growth caps, portable beauty devices, wearable health monitors and mini barcode scanners to achieve further size reduction and weight savings for improved user experience.

2. Superior circular beam for simplified optical systems

VCSEL emits light perpendicular to the chip surface, naturally producing a circular symmetric beam with low divergence and uniform energy distribution. It eliminates the need for complex fast/slow axis collimation and beam shaping, and achieves ideal illumination or focusing with only a simple lens. In 650nm red light medical and sensing applications, the uniform circular spot ensures consistent energy distribution and improves treatment efficacy and detection accuracy.

3. High wavelength stability for consistent performance

The 650nm VCSEL features a wavelength temperature coefficient of only approximately 0.07nm/℃, far superior to edge-emitting lasers. Over a wide temperature range of -20℃ to 85℃, the wavelength remains stably locked at the target band, ensuring consistent performance in photobiomodulation and optical sensing applications and avoiding performance fluctuations caused by ambient temperature changes.

4. Low power consumption and high efficiency for extended battery life

VCSEL features lower threshold current and higher electro-optical conversion efficiency, delivering significantly lower power consumption at the same output power. For battery-powered portable devices, it effectively extends operating time while reducing heat generation and simplifying thermal design.

5. Automated mass production for improved quality and delivery

SMD VCSEL adopts mature semiconductor wafer-level manufacturing processes, enabling full testing and sorting at the wafer stage. After packaging, it is directly compatible with standard SMT production lines for high-speed automated mounting. This not only greatly improves production efficiency but also ensures consistency and reliability of mass-produced products, reducing quality risks caused by manual assembly.

6. Flexible array configuration for expanded power capacity

Although a single VCSEL outputs milliwatt-level power, multiple emitters can be integrated into an array within a single package to flexibly increase total optical power. Compared with solutions using multiple TO lasers, array VCSEL features more regular arrangement, more uniform beam profile and smaller footprint, making it especially suitable for large-area illumination applications.

IV. Core Application Scenarios of 650nm Band: Replacement Upgrade Is Underway

Medical Health & Aesthetic Medicine

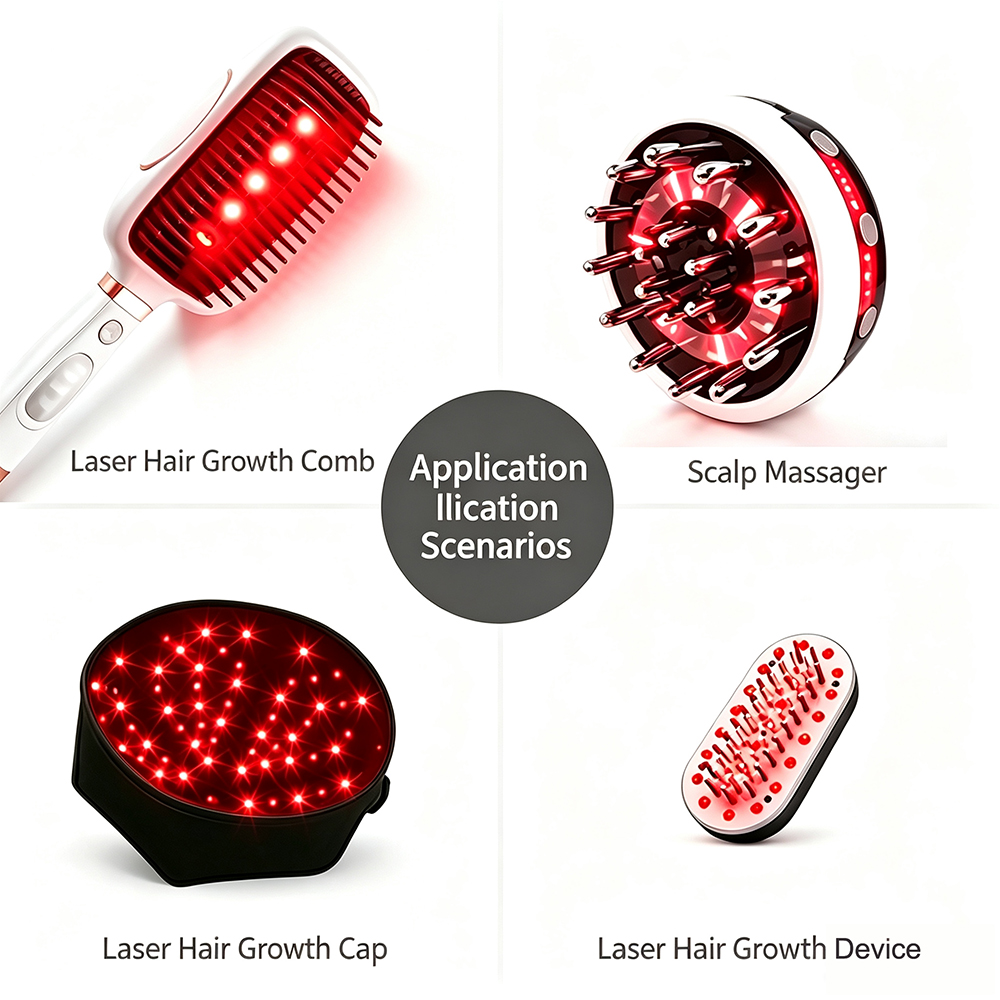

The 650nm red light falls within the golden band of photobiomodulation and is widely used in laser hair growth, skin rejuvenation, wound healing and inflammation relief. The uniform circular beam and low heat generation of SMD VCSEL ensure even energy delivery to target tissues without local high-temperature burns. Its thin SMD package perfectly fits wearable and portable devices such as hair growth caps, hair growth combs and handheld beauty instruments, empowering the upgrade of home medical products.



Wearable Health Monitoring

Integrated into smart bands, rings and watches, the 650nm VCSEL enables photoplethysmography (PPG) for monitoring heart rate, blood oxygen, sleep and other physiological parameters. Compared with traditional LED solutions, VCSEL delivers a more concentrated beam and higher signal-to-noise ratio for more accurate monitoring data. Its low power consumption supports 24-hour continuous monitoring, and the SMD package is ideal for compact wearable products.

Industrial Sensing & Barcode Scanning

In industrial scenarios such as 1D/2D barcode scanning, positioning and aiming, photoelectric switches and visual inspection, the SMD VCSEL 650nm light source provides stable red light indication and sensing illumination. The circular beam, paired with simple optics, produces clear aiming lines or uniform illumination surfaces. The SMD package supports miniaturized sensor design, and SMT manufacturing enhances mass production capability for industrial products.

Scientific Research & Analytical Instruments

In precision instruments such as spectral analysis, bio-detection and optical experiments, the narrow linewidth, high wavelength stability and high modulation speed of 650nm VCSEL provide high-quality coherent light sources. The SMD package facilitates integration into micro-optical modules, driving the development of analytical instruments toward miniaturization and portability.

​
