3535 red yellow dual color medical beauty LED
Product Feature:
★Using chip packaging from well-known manufacturers.
★99.99% gold wire welding.
★Good bright spots and High bright
★Red and yellow dual color
★595nm+625nm
Product Use:
★LED phototherapy device, large row lamp, therapy panel, spectrometer, etc
★Using chip packaging from well-known manufacturers.
★99.99% gold wire welding.
★Good bright spots and High bright
★Red and yellow dual color
★595nm+625nm
Product Use:
★LED phototherapy device, large row lamp, therapy panel, spectrometer, etc
3535 red yellow dual color medical beauty LED

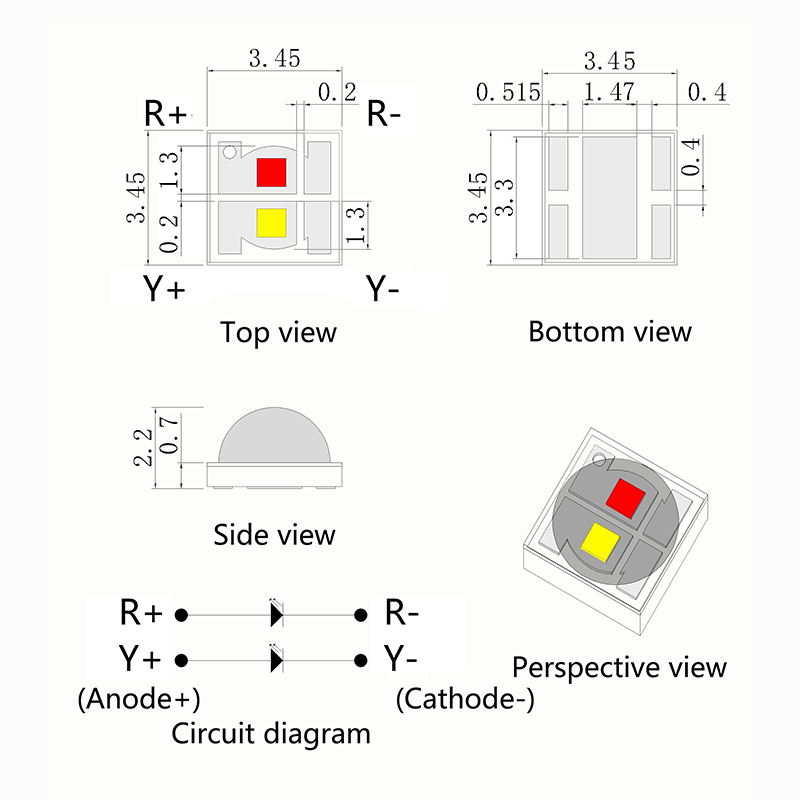

规格 Datasheet
| 型号 Part No. |
功率 Power (W) |
色温/波长 CCT(K)/Wavelength(nm) |
光通量 Luminous(lm) |
电压 Voltage (V) |
电流 Current (mA) |
角度 Angle (deg) |
| JH-3535RY12S40-T7 | 2*3W | 590-595 | 70-90 lm | 2.2-2.6 | 700 | 120 |
| 620-625 | 110-120 lm | 2.2-2.6 | 700 |
Note: Customizable
