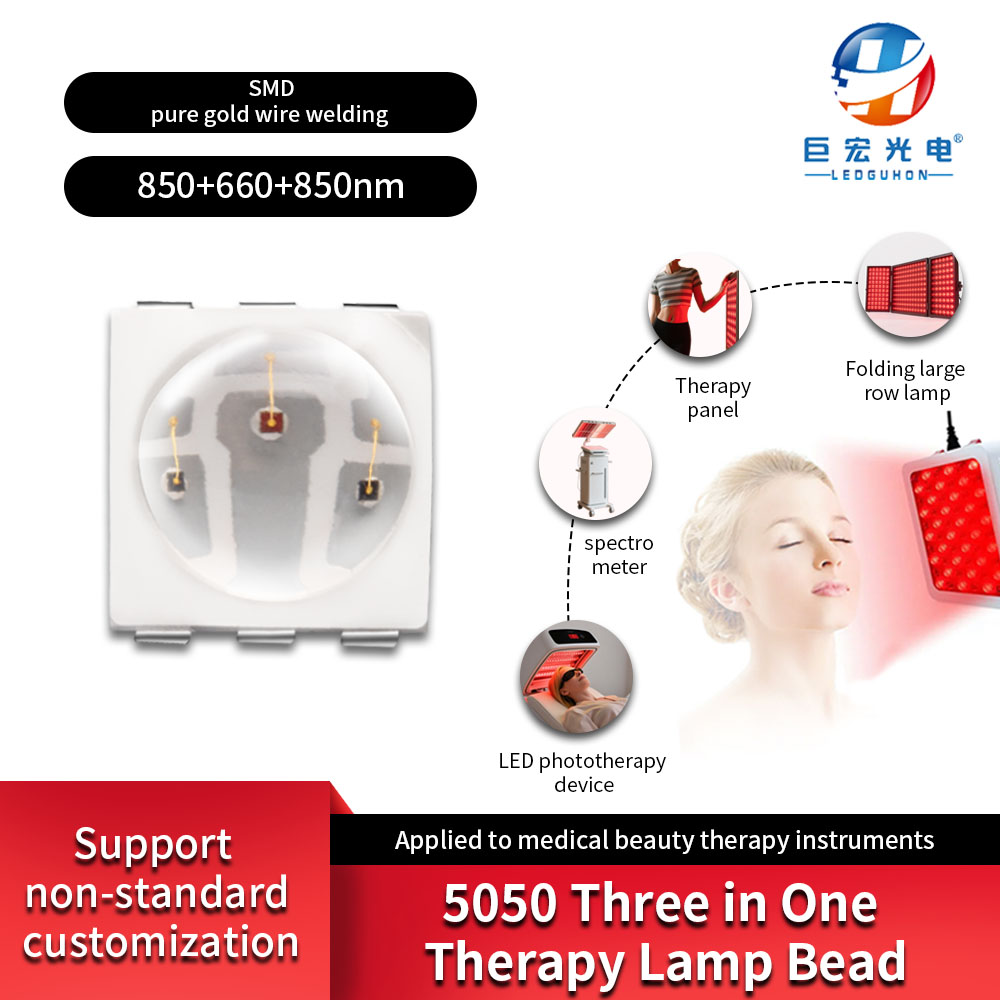

5050 multi band phototherapy beauty patch LED beads
Product Feature:
★Using chip packaging from well-known manufacturers.
★99.99% gold wire welding.
★Good bright spots and High bright
★three-in-one
★660+850+850nm
Product Use:
★LED phototherapy device, spectrometer, therapy panel, folding large row lamp, etc
★Using chip packaging from well-known manufacturers.
★99.99% gold wire welding.
★Good bright spots and High bright
★three-in-one
★660+850+850nm
Product Use:
★LED phototherapy device, spectrometer, therapy panel, folding large row lamp, etc
5050 multi band phototherapy beauty patch LED beads

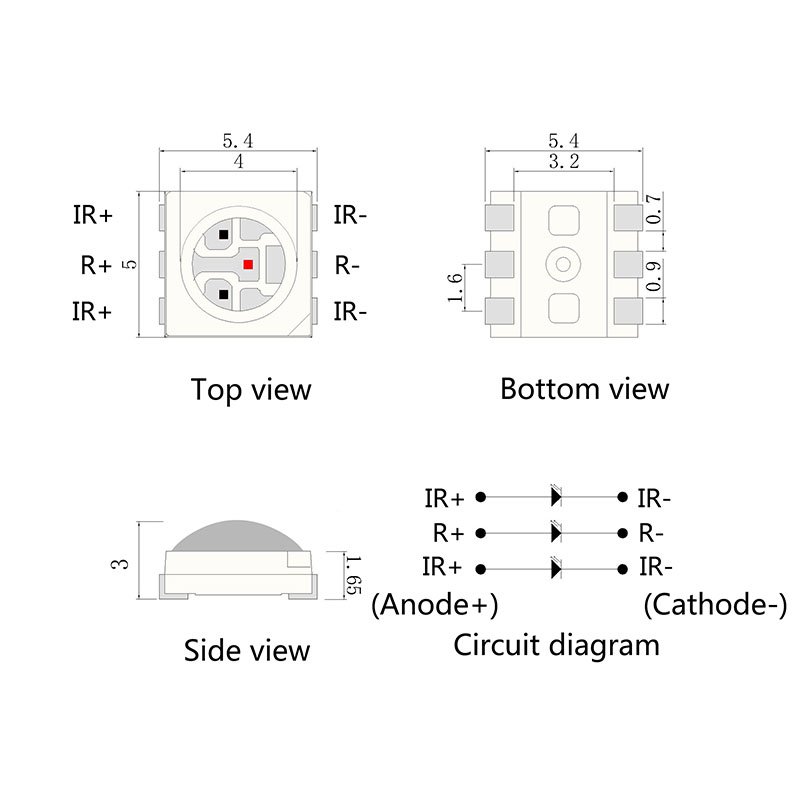

规格 Datasheet
| 型号 Part No. |
功率 Power (W) |
色温/波长 CCT(K)/Wavelength(nm) |
光通量 Luminous(lm)/ 光功率 power dissipation（mw） |
电压 Voltage (V) |
电流 Current (mA) |
角度 Angle (deg) |
| JH-5050IRRIR6SL10-T12A-660-860 | 3*0.06W | 655-660 | 1-2 lm | 1.8-2.2 | 20 | 120 |
| 850-860 | 8-13 mW | 1.4-1.8 | 20 |
Note: Customizable
