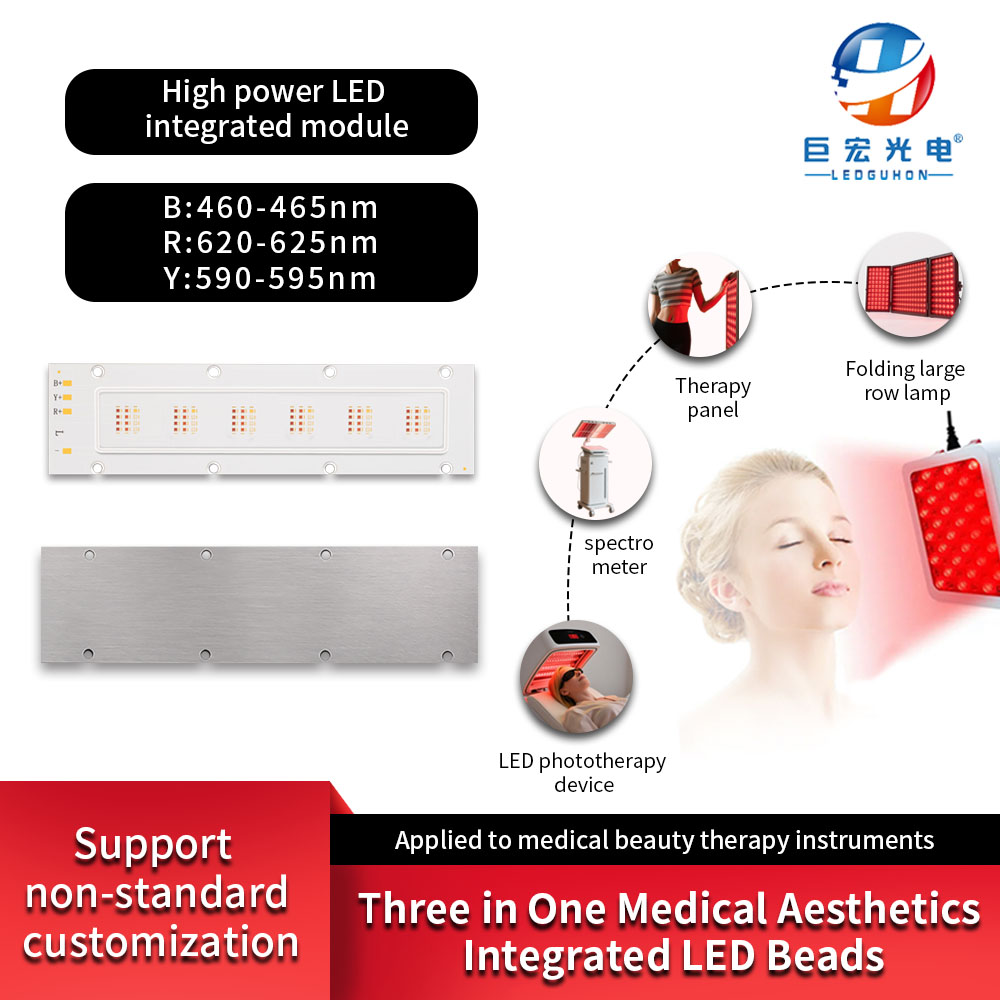

66W Red Blue Yellow Three in One COB Medical Aesthetics Therapy Lamp Bead
Product Feature:
★Using chip packaging from well-known manufacturers.
★99.99% gold wire welding.
★Good bright spots and High bright
★Red, blue, and yellow three in one
★620nm+460nm+590nm
Product Use:
★LED phototherapy device, spectrometer, therapy panel, spectrometer, etc
★Using chip packaging from well-known manufacturers.
★99.99% gold wire welding.
★Good bright spots and High bright
★Red, blue, and yellow three in one
★620nm+460nm+590nm
Product Use:
★LED phototherapy device, spectrometer, therapy panel, spectrometer, etc
66W Red Blue Yellow Three in One COB Medical Aesthetics Therapy Lamp Bead

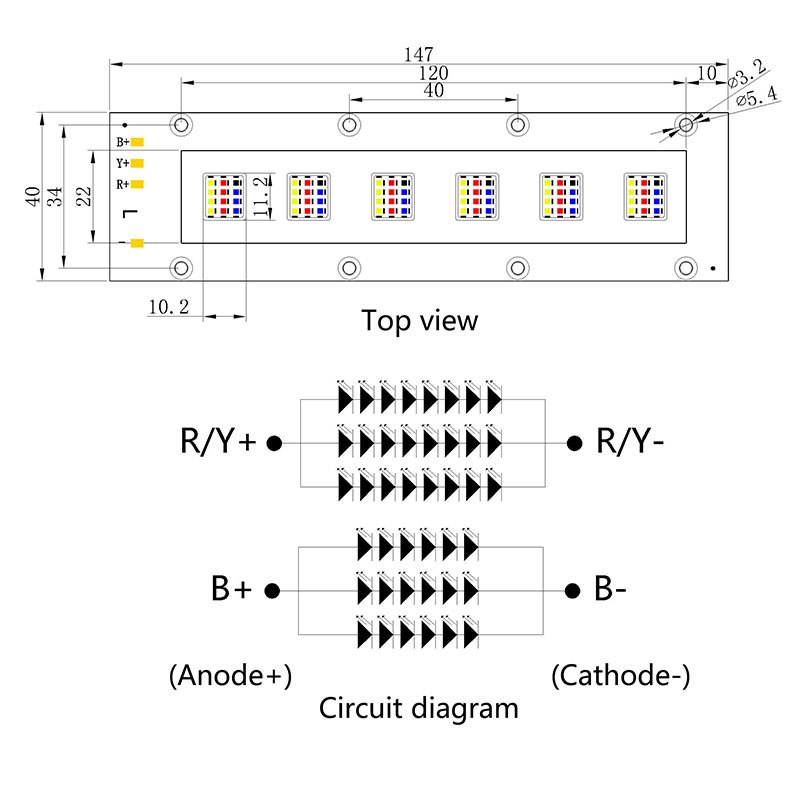

规格 Datasheet
| 型号 Part No. |
功率 Power (W) |
色温/波长 CCT(K)/Wavelength(nm) |
光通量 Luminous(lm)/ 光功率 power dissipation（mw） |
电压 Voltage (V) |
电流 Current (mA) |
角度 Angle (deg) |
| JH-66BYR14G40-LJB-N460-495 | 66 | 620-625 | / | 16-18 | 1050 | 140 |
| 460-465 | / | 19-21 | 1050 | |||
| 590-595 | / | 19-21 | 1050 |
Note: Customizable
