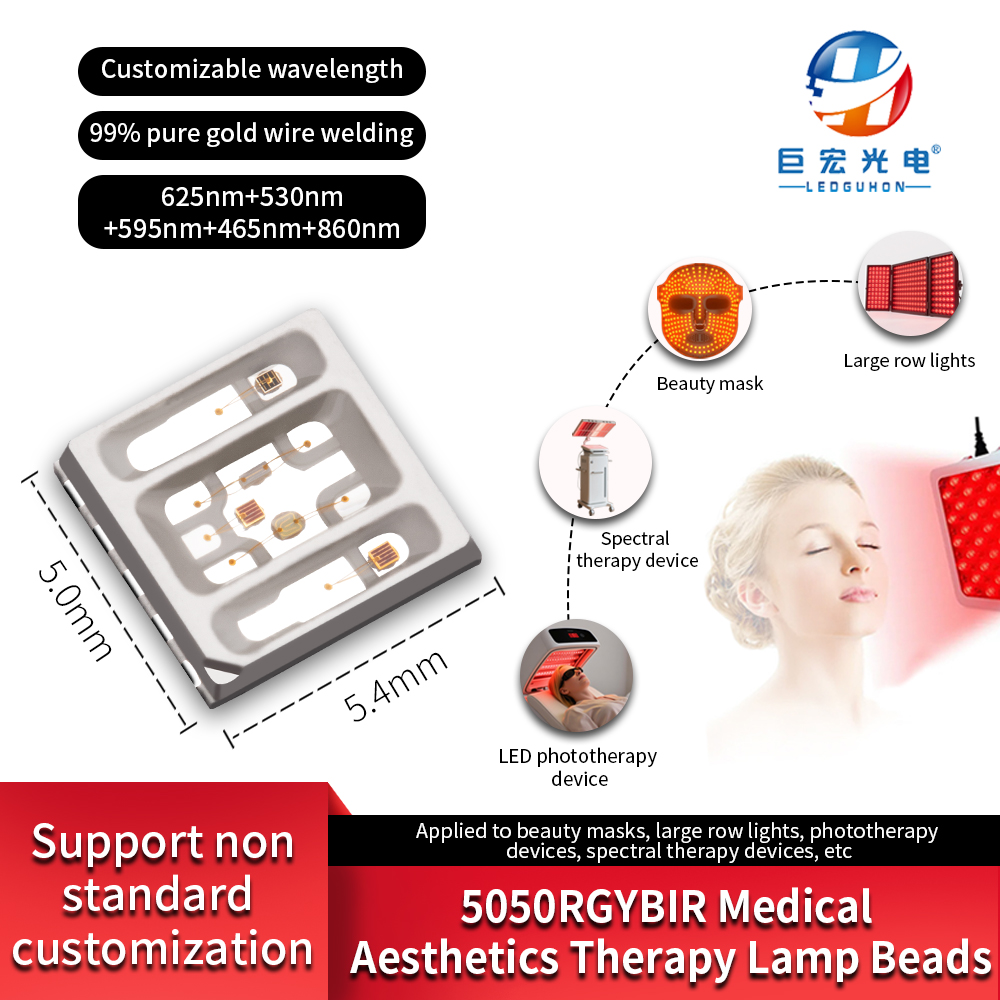

5054 Five in One Colorful High Power Ultra High Brightness Medical Beauty LED Light Source
Product Feature:
★Using chip packaging from well-known manufacturers.
★99.99% gold wire welding.
★Good bright spots and High bright
★Five in one ultra bright and colorful
Product Use:
★Large row lights, beauty lamps, spectrometers, phototherapy devices, etc
★Using chip packaging from well-known manufacturers.
★99.99% gold wire welding.
★Good bright spots and High bright
★Five in one ultra bright and colorful
Product Use:
★Large row lights, beauty lamps, spectrometers, phototherapy devices, etc
5054 Five in One Colorful High Power Ultra High Brightness Medical Beauty Therapy LED Light Source

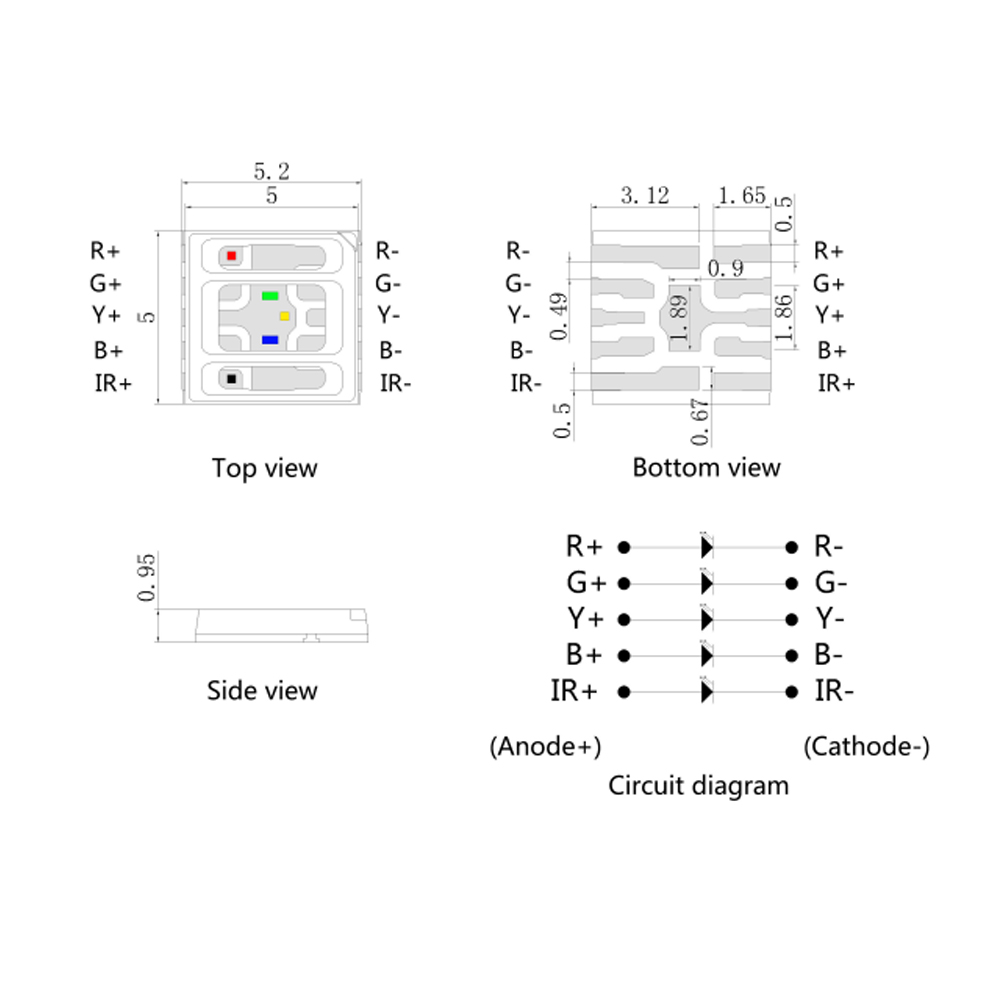

规格Datasheet
| 型号 Part No. |
功率 Power (W) |
波长 Wavelength （nm） |
光通量/光功率 luminous flux(lm)/ Optical power（mW） |
电压 Voltage (V) |
电流 Current (mA) |
角度 Angle (deg) |
| JH-5054RGYBIR12QX16-P12A-A06-460-860 | 5*1W | 620-625 | 7-12 lm | 2.0-2.4 | 60 | 120 |
| 525-530 | 20-25 lm | 3.0-3.4 | ||||
| 590-595 | 7-12 lm | 2.0-2.4 | ||||
| 460-465 | 4-7 lm | 3.0-3.4 | ||||
| 850-860 | 28-33 mW | 1.4-1.6 | ||||
| JH-5054IRZRYVIR12QX12-P12A-410-LS1064 | 5*1W | 825-830 | 20-30 mW | 1.6-1.8 | 60 | 120 |
| 620-625 | 7-12 lm | 2.0-2.4 | ||||
| 590-595 | 7-12 lm | 2.0-2.4 | ||||
| 410-415 | 1-3 lm | 3.0-3.4 | ||||
| 1064 | 20 mW | 2.0 | 25 | |||
| JH-5054IRZRYVIR12QX12-P12A-410-1064 | 5*1W | 825-830 | 20-30 mW | 1.6-1.8 | 60 | 120 |
| 620-625 | 7-12 lm | 2.0-2.4 | ||||
| 590-595 | 7-12 lm | 2.0-2.4 | ||||
| 410-415 | 1-3 lm | 3.0-3.4 | ||||
| 1040-1090 | 7-12 mW | 1.4-1.6 |
Note: Customizable
