Product centerHOME > Product description > Gold plated glass lens
Gold plated glass lens 36/39/70 UV LED series
Product Feature:
★Adopt well-known vender’s chip package.
★99.99% gold wire welding
★Gold plated frame,good heat sink
Product Use:
★Curing Light,Money Detector Light,Medical Light
★Decorative Light,Aquarium Light,etc
★Adopt well-known vender’s chip package.
★99.99% gold wire welding
★Gold plated frame,good heat sink
Product Use:
★Curing Light,Money Detector Light,Medical Light
★Decorative Light,Aquarium Light,etc

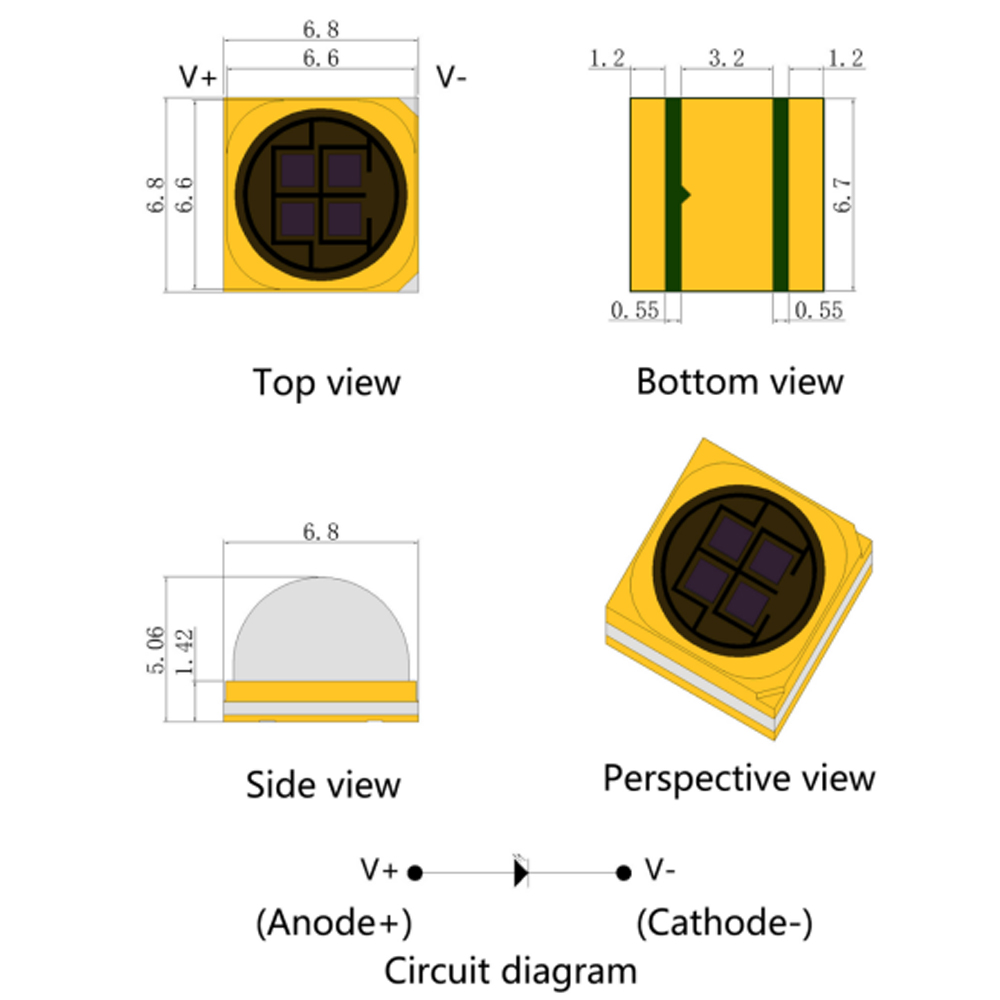

3636/3939/7070 UV LED
规格Datasheet
| 型号 Part No. |
功率 Power (W) |
波长 Wavelength (nm) |
光通量 Luminous (lm) |
电压 Voltage (V) |
电流 Current (mA) |
角度 Angle (deg) |
| JH-3636V6S45-T8A-JC367.5 | 3 | 365-370 | 15-25 | 3.2-3.8 | 700 | 60 |
| JH-3636V6G45-T8A-JC367.5 | 3 | 365-370 | 15-25 | 3.2-3.8 | 700 | 60 |
| JH-3636V6G56-T8A-JC367.5 | 5 | 365-370 | 25-35 | 3.2-3.8 | 1000 | 60 |
| JH-3636V6S45-T8A-JC387.5 | 3 | 385-390 | 30-40 | 3.2-3.8 | 700 | 60 |
| JH-3636V6S45-T8A-JC397.5 | 3 | 395-400 | 30-40 | 3.2-3.8 | 700 | 60 |
| JH-3939V6S45-T8A-JC367.5 | 3 | 365-370 | 15-25 | 3.2-3.8 | 700 | 60 |
| JH-3939V6G45-T8A-JC367.5 | 3 | 365-370 | 15-25 | 3.2-3.8 | 700 | 60 |
| JH-3939V6G56-T8A-JC367.5 | 5 | 365-370 | 25-35 | 3.2-3.8 | 1000 | 60 |
| JH-3939V6S45-T8A-JC387.5 | 3 | 385-390 | 30-40 | 3.2-3.8 | 700 | 60 |
| JH-3939V6S45-T8A-JC397.5 | 3 | 395-400 | 30-40 | 3.2-3.8 | 700 | 60 |
| JH-7070V6S45-T8A-JC367.5 | 6 | 365-370 | 40-60 | 3.2-3.8 | 1400 | 60 |
| JH-7070V6S45-T8A-JC387.5 | 6 | 385-390 | 60-80 | 3.2-3.8 | 1400 | 60 |
| JH-7070V6S45-T8A-JC397.5 | 6 | 395-400 | 60-80 | 3.2-3.8 | 1400 | 60 |
