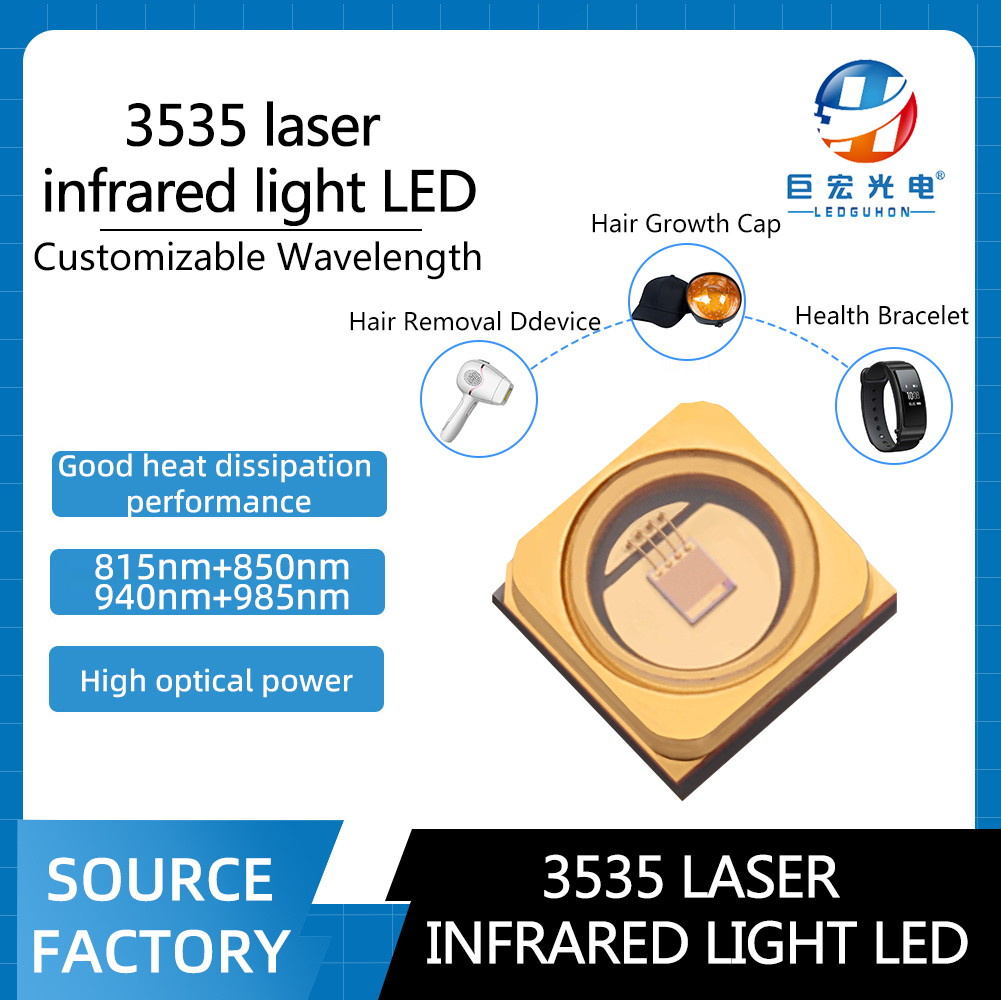

Ceramic 3535 VCSEL 2W/3W infrared LED beads
product features:
★ It is packaged with chips from well-known manufacturers
★99.99% gold wire welding
★ ceramic package, good heat dissipation
★ Good light concentration and high energy
product application:
★ Medical beauty lamp, medical lamp, beauty lamp, etc.
★ lidar、Night vision detective
★ It is packaged with chips from well-known manufacturers
★99.99% gold wire welding
★ ceramic package, good heat dissipation
★ Good light concentration and high energy
product application:
★ Medical beauty lamp, medical lamp, beauty lamp, etc.
★ lidar、Night vision detective
Ceramic 3535 VCSEL 2W/3W infrared LED beads
规格 Datasheet
| 型号 Part No. |
波长 Wavelength （nm） |
光功率 Optical Power （W） |
电压 Voltage （V） |
电流 Current （A） |
角度 Angle （deg） |
| JH-3636IR18S40-T8A-LS850 | 840-860 | 2 | 1.8-2.2 | 0.5-3.0 | 22 |
| JH-3636IR18S40-T8A-LSJ815 | 800-815 | 2 | 2.1-2.4 | 0.5-3.0 | 25 |
| JH-3636IR18S40-T8A-LS940 | 930-950 | 3 | 1.75-2.0 | 0.45-3.5 | 23 |
| JH-3636IR18S3135-T8A-LS985 | 970-990 | 3 | 1.75-2.0 | 0.45-3.5 | 23 |
Note: Customization is available upon request!
