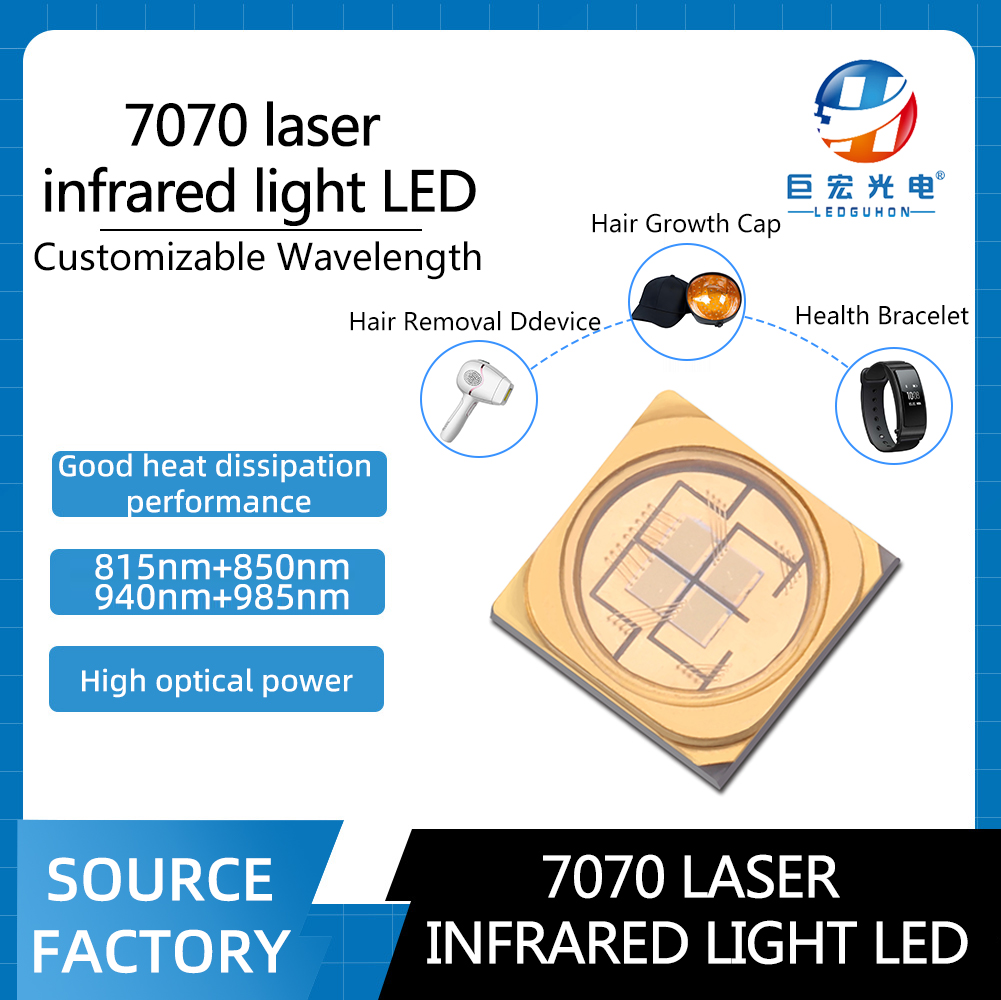

7070VCSEL laser infrared medical beauty monitoring LED beads

product features:
★ It is packaged with chips from well-known manufacturers
★99.99% gold wire welding
★ ceramic package, good heat dissipation
★ Good light concentration and high energy
product application
★ Medical beauty lamp, medical lamp, beauty lamp, etc.
★ lidar、Night vision detective
7070VCSEL laser infrared medical beauty monitoring LED beads





规格 Datasheet

型号
Part No.		 波长
Wavelength
（nm）		 光功率
Optical Power
（W）		 电压
Voltage
（V）		 电流
Current
（A）		 角度
Angle
（deg）
JH-7070IR18S40-T8A-LS815 800-815 2W*4 2.1-2.4V*4 0.5-3.0A*4 25
JH-7070IR18S40-T8A-LS850 840-860 2W*4 1.8-2.2V*4 0.5-3.0A*4 22
JH-7070IR18S40-T8A-LS850 930-950 3W*4 1.75-2.0V*4 0.45-3.0A*4 23
JH-7070IR18S3135-T8A-LS985 970-990 3W*4 1.75-2.0V*4 0.45-3.0A*4 23

Note: Customization is available upon request!
